Chicken manure drum dryer/high quality

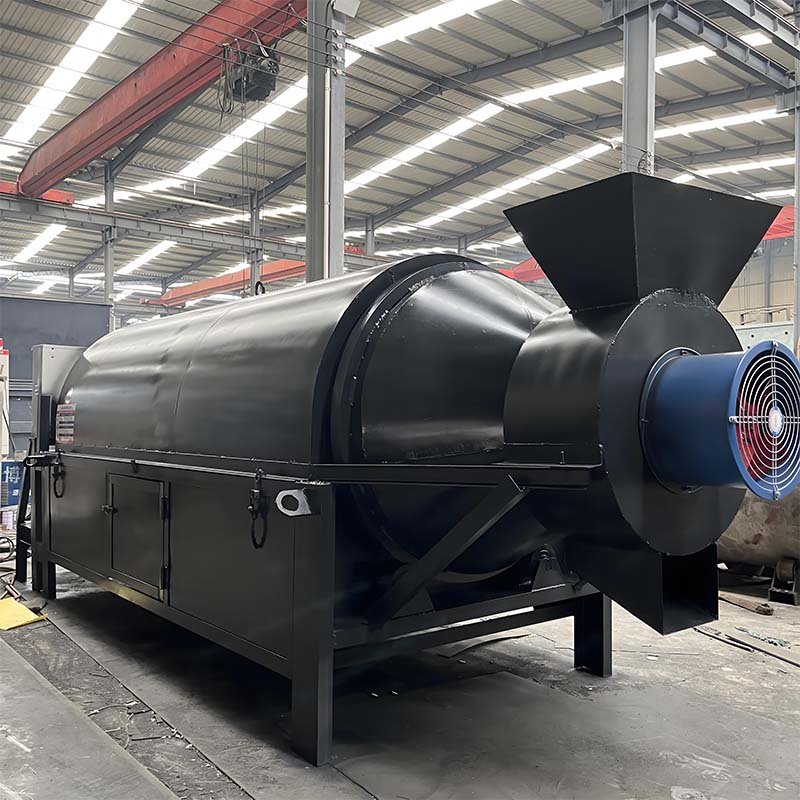

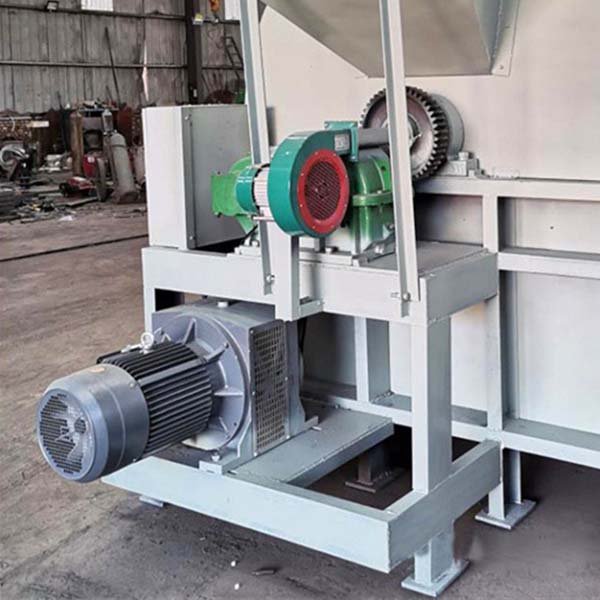

The chicken manure dryer mainly consists of rotating body, lifting plate, transmission device, support device, sealing ring and other components. A dryer is a cylinder that tilts slightly horizontally. The material is added from the higher end, and the high-temperature flue gas flows parallel to the material into the cylinder. When the cylinder rotates, the material moves to the lower end due to gravity. The inner wall of the drum is equipped with a profile plate for picking and spraying materials, increasing the contact surface between the materials and the airflow to improve drying speed and promote material movement forward. Collect dry products from the bottom.

The purpose of a chicken manure dryer is to dry chicken manure, and to make it into fish feed, fruit tree feed, etc. by adding chemical fertilizers and auxiliary materials. The performance characteristics of a chicken manure dryer are dust removal and deodorization. Fresh chicken manure can be used as pig feed, and the waste is also organic fertilizer. The chicken manure dryer can dry feces with a moisture content of 70% -80% to 13%. The entire operation process of the chicken manure dryer is in a fully enclosed state. It can reduce environmental pollution while also playing a role in energy conservation and environmental protection. Chicken manure dryer is an equipment for producing pure chicken manure organic fertilizer.

The drum dryer is mainly used to dry granular materials within a certain humidity range, such as yellow sand used in the dry powder mortar industry and various specifications of molding sand used in the casting industry. Blast furnace slag used in the building materials and cement industry. Small particle clay, used in the chemical industry for small particle materials that do not undergo chemical changes, are not afraid of high temperature and smoke pollution. According to the moisture requirements of different industries for dried materials, the moisture content of the dried materials can reach below 1-0.5%.

1. The drum dryer is one of the traditional drying equipment, with reliable operation, high flexibility, strong adaptability, and large processing capacity. It is widely used in metallurgy, building materials, chemical industry, coal washing, fertilizer, ore, sand, clay, kaolin, sugar and other fields.
2. A three cylinder dryer is a type of dryer that shortens the external dimensions of the dryer body by replacing the single cylinder body with three stacked cylinders. When the machine is in operation, materials and hot air flow enter the inner to outer cylinder in sequence. After the Z-shaped reciprocating flow of the machine body, the heat energy is fully utilized to dry the materials before unloading.
3. The full name of a box dryer is a box type fruit and vegetable dryer. This equipment dries evenly, with fast speed and high efficiency, and the materials are not easy to stick. It can achieve automatic temperature control and moisture removal, which can keep the dried materials in a better shape, maintain the color and shape of the dried materials, and improve product quality.
